etcd 中的raft是如何处理Leader和Follower日志冲突的

引言

raft算法中Leader和Follower之间是通过 rpc 进行通信的，消息定义如下

type Message struct {
	Type MessageType `protobuf:"varint,1,opt,name=type,enum=raftpb.MessageType" json:"type"`
	To   uint64      `protobuf:"varint,2,opt,name=to" json:"to"`
	From uint64      `protobuf:"varint,3,opt,name=from" json:"from"`
	Term uint64      `protobuf:"varint,4,opt,name=term" json:"term"`
	// logTerm is generally used for appending Raft logs to followers. For example,
	// (type=MsgApp,index=100,logTerm=5) means leader appends entries starting at
	// index=101, and the term of entry at index 100 is 5.
	// (type=MsgAppResp,reject=true,index=100,logTerm=5) means follower rejects some
	// entries from its leader as it already has an entry with term 5 at index 100.
	LogTerm    uint64   `protobuf:"varint,5,opt,name=logTerm" json:"logTerm"`
	Index      uint64   `protobuf:"varint,6,opt,name=index" json:"index"`
	Entries    []Entry  `protobuf:"bytes,7,rep,name=entries" json:"entries"`
	Commit     uint64   `protobuf:"varint,8,opt,name=commit" json:"commit"`
	Snapshot   Snapshot `protobuf:"bytes,9,opt,name=snapshot" json:"snapshot"`
	Reject     bool     `protobuf:"varint,10,opt,name=reject" json:"reject"`
	RejectHint uint64   `protobuf:"varint,11,opt,name=rejectHint" json:"rejectHint"`
	Context    []byte   `protobuf:"bytes,12,opt,name=context" json:"context,omitempty"`
}

复制代码

就和注释一样，Leader给Follower发送消息的时候，会携带一个LogTerm和Index分别表示发送的消息Entries的前一条记录的Term和Index，正常情况下这条记录是应该已经被Follower所接受的，因为Leader会记录Follower的进度，然后按照进度和Follower同步日志。

在Follower接受到消息的时候，其处理方式如下:

func (r *raft) handleAppendEntries(m pb.Message) {
	if m.Index < r.raftLog.committed {
		r.send(pb.Message{To: m.From, Type: pb.MsgAppResp, Index: r.raftLog.committed})
		return
	}

	if mlastIndex, ok := r.raftLog.maybeAppend(m.Index, m.LogTerm, m.Commit, m.Entries...); ok {
		r.send(pb.Message{To: m.From, Type: pb.MsgAppResp, Index: mlastIndex})
	} else {
		r.logger.Debugf("%x [logterm: %d, index: %d] rejected MsgApp [logterm: %d, index: %d] from %x",
			r.id, r.raftLog.zeroTermOnErrCompacted(r.raftLog.term(m.Index)), m.Index, m.LogTerm, m.Index, m.From)

		// Return a hint to the leader about the maximum index and term that the
		// two logs could be divergent at. Do this by searching through the
		// follower's log for the maximum (index, term) pair with a term <= the
		// MsgApp's LogTerm and an index <= the MsgApp's Index. This can help
		// skip all indexes in the follower's uncommitted tail with terms
		// greater than the MsgApp's LogTerm.
		//
		// See the other caller for findConflictByTerm (in stepLeader) for a much
		// more detailed explanation of this mechanism.
		hintIndex := min(m.Index, r.raftLog.lastIndex())
		hintIndex = r.raftLog.findConflictByTerm(hintIndex, m.LogTerm)
		hintTerm, err := r.raftLog.term(hintIndex)
		if err != nil {
			panic(fmt.Sprintf("term(%d) must be valid, but got %v", hintIndex, err))
		}
		r.send(pb.Message{
			To:         m.From,
			Type:       pb.MsgAppResp,
			Index:      m.Index,
			Reject:     true,
			RejectHint: hintIndex,
			LogTerm:    hintTerm,
		})
	}
}
复制代码

处理的时候是有一个分支的，用于判断是接受日志，还是拒绝日志。是否拒绝的条件其实就是判断Leader发送过来的index对应的term和Follower本地存的index对应的term是否匹配。匹配则接受日志，不匹配则拒绝日志。当然，不匹配不能仅仅拒绝日志。得反馈写有用的信息，让Leader知道应该发送哪些消息给你，让你开始接受。

// maybeAppend returns (0, false) if the entries cannot be appended. Otherwise,
// it returns (last index of new entries, true).
func (l *raftLog) maybeAppend(index, logTerm, committed uint64, ents ...pb.Entry) (lastnewi uint64, ok bool) {
	if l.matchTerm(index, logTerm) {
		lastnewi = index + uint64(len(ents))
		ci := l.findConflict(ents)
		switch {
		case ci == 0:
		case ci <= l.committed:
			l.logger.Panicf("entry %d conflict with committed entry [committed(%d)]", ci, l.committed)
		default:
			// ents 中的消息是 index+1, index+2, index+3, ....
			//                offset, ...,, conflictIndex
			// -> ents[ci-offset:]
			offset := index + 1
			l.append(ents[ci-offset:]...)
		}
		l.commitTo(min(committed, lastnewi))
		return lastnewi, true
	}
	return 0, false
}
复制代码

Follower 的处理方式

第一步操作如下，确定从那条日志开始找冲突，开始查找的日志必须是我有的日志，所以有一个取较小值的操作

hintIndex := min(m.Index, r.raftlog.lastIndex())
复制代码

第二步操作如下，返回一个hintIndex，难道这个hintIndex就是冲突的交汇处？然后Leader从这个hintIndex返回日志Follower接住就好了？

hintIndex = r.raftLog.findConflictByTerm(hintIndex, m.LogTerm)
复制代码

要回答上面的问题，得先来看看方法findConflictByTerm干了些啥，这个方法是找到Follower中第一条term小于等于Leader发送过来的LogTerm的日志的index

// findConflictByTerm takes an (index, term) pair (indicating a conflicting log
// entry on a leader/follower during an append) and finds the largest index in
// log l with a term <= `term` and an index <= `index`. If no such index exists
// in the log, the log's first index is returned.
//
// The index provided MUST be equal to or less than l.lastIndex(). Invalid
// inputs log a warning and the input index is returned.
func (l *raftLog) findConflictByTerm(index uint64, term uint64) uint64 {
	if li := l.lastIndex(); index > li {
		// NB: such calls should not exist, but since there is a straightfoward
		// way to recover, do it.
		//
		// It is tempting to also check something about the first index, but
		// there is odd behavior with peers that have no log, in which case
		// lastIndex will return zero and firstIndex will return one, which
		// leads to calls with an index of zero into this method.
		l.logger.Warningf("index(%d) is out of range [0, lastIndex(%d)] in findConflictByTerm",
			index, li)
		return index
	}
	for {
		logTerm, err := l.term(index)
		if logTerm <= term || err != nil {
			break
		}
		index--
	}
	return index
}
复制代码

第三部操作如下，细心点的同学其实会发现这个操作是冗余的，因为在findConflictByTerm的时候是进行过了查找日志index的term的过程的，是通过l.term(index)进行的，这个函数是可以返回index对应的term的。

hintTerm, err := r.raftLog.term(hintIndex)
复制代码

总结上面三步的操作就是找到Follower日志中第一个小于等于Leader发送过来的m.LogTerm的第一条日志的index和term，然后返回给Leader。

问题解决了吗？

Leader下一步直接从这个hintIndex发送消息就好了嘛？不是的。比如下面这个场景的时候，Leader发送一条(idx=9, term=5)给Follower，这个时候Follower会返回(hintIndex=6, hintTerm=2)。如果Leader发送(idx=6, term=5)，那么Follower会继续拒绝，因为Follower的index=6的日志对应的term是2。Leader要想消息不被拒绝，通过hintTerm=2可以知道，应该发送的消息是(idx=1, term=1)。

// For example, if the leader has:
//
//   idx        1 2 3 4 5 6 7 8 9
//              -----------------
//   term (L)   1 3 3 3 5 5 5 5 5
//   term (F)   1 1 1 1 2 2
复制代码

那么Leader在接收到拒绝的消息之后，应该怎么进行处理的呢？简单的方式是index-1不断的进行重试，直到找到匹配的节点，但是这样效率是比较低。也可以通过方法findConflictByTerm找到第一个小于等于term的index，因为如果Leader继续发送大于hintTerm的消息的时候，Follower必然还会拒绝。当然这个过程也不是一下子就找到的，Leader和Follower进行也可能是多次交流才找到合适的位置进行操作。

nextProbeIdx := m.RejectHint
if m.LogTerm > 0 {
	nextProbeIdx = r.raftLog.findConflictByTerm(m.RejectHint, m.LogTerm)
}
if pr.MaybeDecrTo(m.Index, nextProbeIdx) {
	r.logger.Debugf("%x decreased progress of %x to [%s]", r.id, m.From, pr)
	if pr.State == tracker.StateReplicate {
		pr.BecomeProbe()
	}
	r.sendAppend(m.From)
}
复制代码

为了更好的说明过程，所以手动的花了下面两张图。

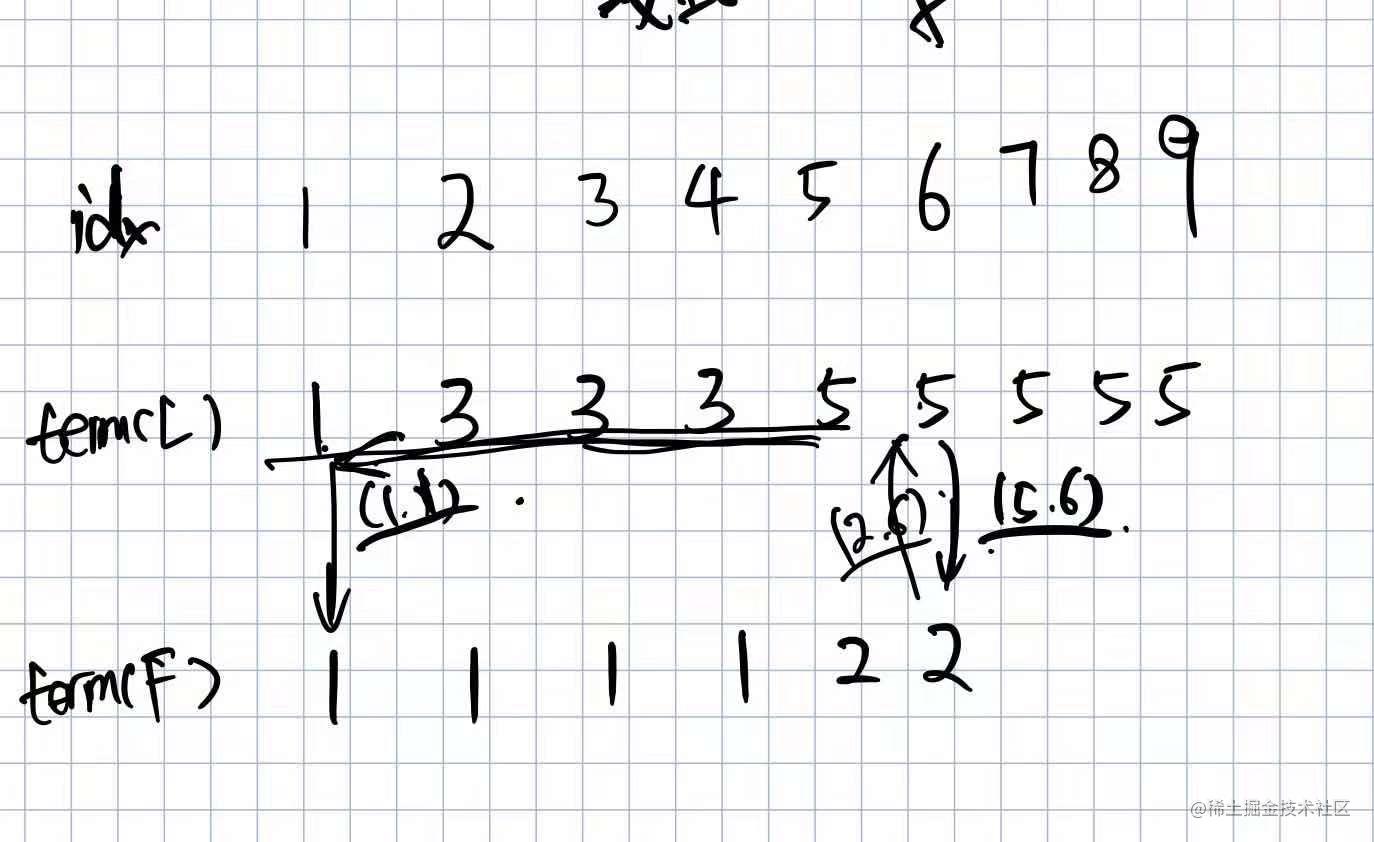

场景1：

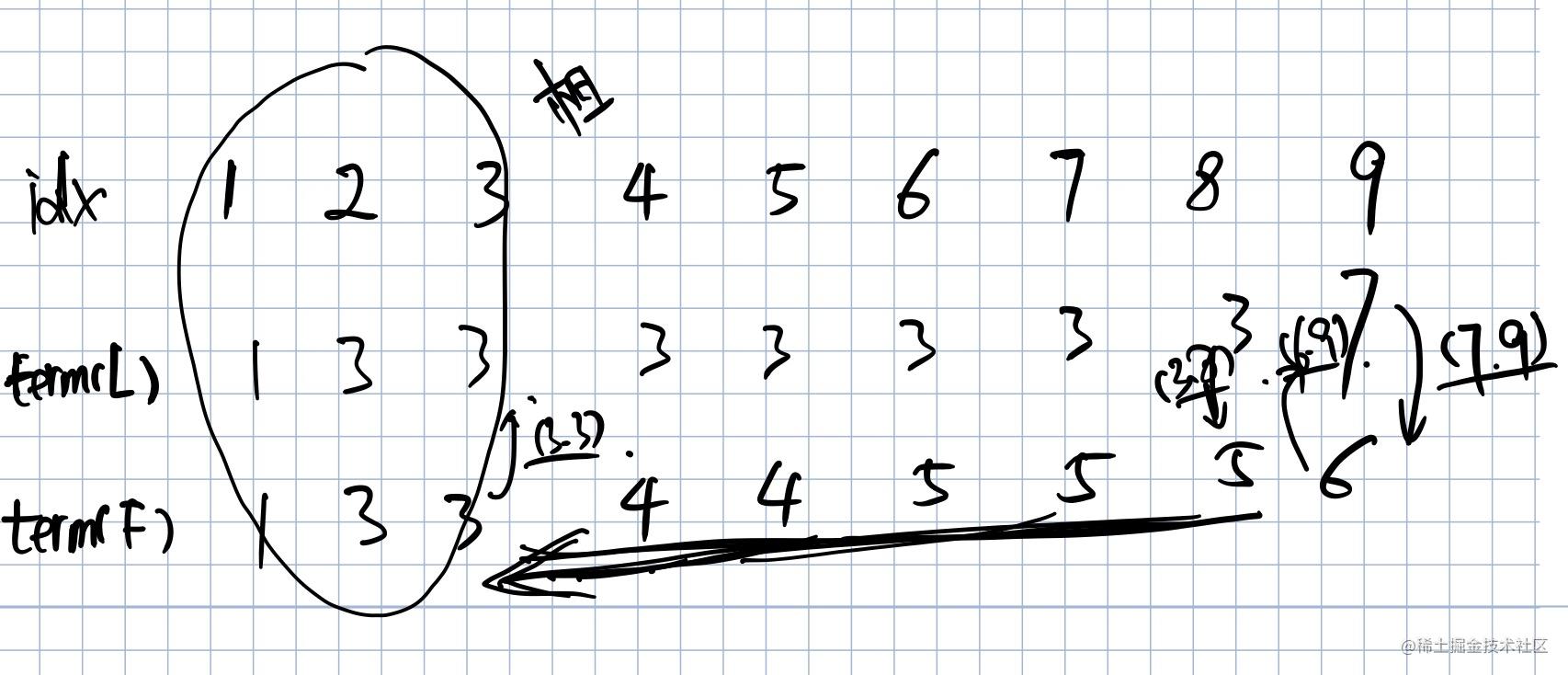

场景2：

Follower 添加日志

Follower添加日志是通过函数append进行的，如下：

func (l *raftLog) append(ents ...pb.Entry) uint64 {
	if len(ents) == 0 {
		return l.lastIndex()
	}
	if after := ents[0].Index - 1; after < l.committed {
		l.logger.Panicf("after(%d) is out of range [committed(%d)]", after, l.committed)
	}
	l.unstable.truncateAndAppend(ents)
	return l.lastIndex()
}
复制代码

通过方法名truncateAndAppend知道，这个方法是处理冲突的，分支default是处理冲突的操作，把Follower中after之后的index的日志去掉，然后添加到entries之中就好了。

func (u *unstable) truncateAndAppend(ents []pb.Entry) {
	after := ents[0].Index
	switch {
	case after == u.offset+uint64(len(u.entries)):
		// after is the next index in the u.entries
		// directly append
		u.entries = append(u.entries, ents...)
	case after <= u.offset:
		u.logger.Infof("replace the unstable entries from index %d", after)
		// The log is being truncated to before our current offset
		// portion, so set the offset and replace the entries
		u.offset = after
		u.entries = ents
	default:
		// remove conflicted ents
		// truncate to after and copy to u.entries
		// then append
		u.logger.Infof("truncate the unstable entries before index %d", after)
		u.entries = append([]pb.Entry{}, u.slice(u.offset, after)...)
		u.entries = append(u.entries, ents...)
	}
}
复制代码

总结

这个就是对论文raft中，Follower和Leader日志不同的时候，Follower和Leader的日志保持一致解决方案，还是挺有意思的。
